SF INSPECT 3D for PTC Creo

Ballooning of Characteristics / Bill of Characteristics and Change Management for MBD at the Push of a Button

Companies more than ever are facing the challenge to bring to market a growing number of products in different variants with better quality and at a competitive price. Qualified workers are becoming more scarce and should hence be used for tasks that really create a value.

SF INSPECT 3D automates the unique ballooning and identification of all characteristics throughout the entire life cycle. With features for change tracking, changes can be identified easily visually or in a table throughout the entire value chain. By eliminating manual activities, the costs of errors can be reduced. Changes are updated quickly and document the revision history in a traceable way.

Benefits SF INSPECT 3D for Creo

  • Ballooning of Characteristics in 3D
  • Reduced Workload
  • Unique numbering of characteristics throughout the product lifecycle
  • Error reduction
  • PMIs directly from the 3D model

Features SF INSPECT 3D for Creo

  • Ballooning of characteristics in 3D and combined states
  • Extraction of product manufacturing information PMI
  • Visualization of the symbols in the bill of characteristics
  • Export in QDAS

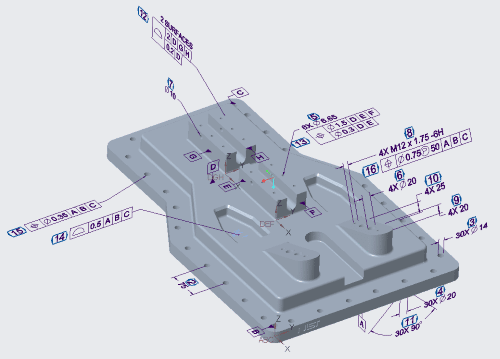

3D Model After Ballooning in Creo

Inspect-Tabelle

Inspect List of Characteristics
