SF QCHECK

Check CAD models against standards and design guidelines

Every company defines specific standards and design guidelines for its assemblies, parts and drawings. QCHECK for Creo checks the compliance with these specifications in the design process. As a consequence it ensures CAD data quality and compatibility with the subsequent process chain. An automatic correction option for guideline violations is available.

QCHECK is directly integrated into the user interface of Creo and checks the active object. The active model being an assembly or drawing, all sub models can be checked as well. The test results are shown in a separate window. They are presented in form of an overview list with check type, result number and classification of the results (error, warning or information). By choice of a result category, the individual results are listed in detail. By selecting a single result, the selected element can be highlighted in Creo. In most cases violated check criteria can be automatically corrected.

Examining criteria for parts, assemblies and drawings:

Parts:

  • Template
  • Feature names
  • Suppressed elements
  • Coordinate systems
  • Relations
  • External references
  • Model status
  • Layer occupancy
  • Not standard layers
  • MERGE layers
  • Model name
  • Name of simplified representations
  • Model accuracy

Drawings:

  • Template
  • Additional dimensions
  • Suppressed views
  • Elements outside the drawing frame
  • Not used drawing models
  • Drawing name
  • Character height
  • Examine 2D elements by groups
  • Model status
  • Model name
  • Drawing format
  • Drawing frame
  • Used drawing models

Assemblies:

  • Template
  • Assembly depth
  • Assembly structure
  • Assembly references
  • Feature names
  • Suppresses elements
  • Coordinate systems
  • Relations
  • Model status
  • Layer occupancy
  • Not standard layers
  • MERGE layers
  • Circular references
  • Model name
  • Name of simplified┬árepresentations
  • Model accuracy

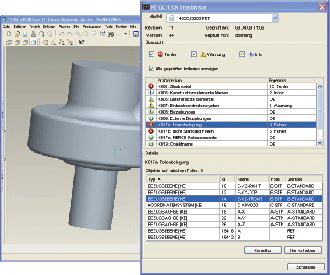

Fig. 1: QCHECK Result Window

Supported hardware and software:

QCHECK for Creo is available for the current and supported versions of PTC Creo, PTC Creo Elements/Pro and Pro/ENGINEER.

Please do not hesitate to contact us, if you require more information, or if you are looking for something else.

Download

Download your QCHECK flyer here.
